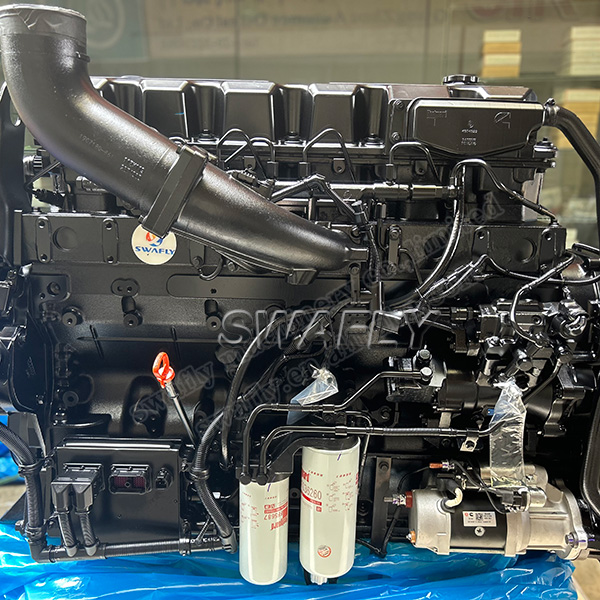

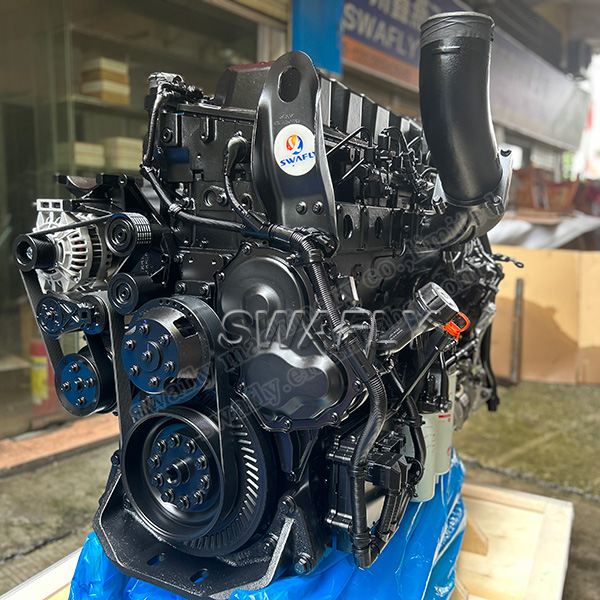

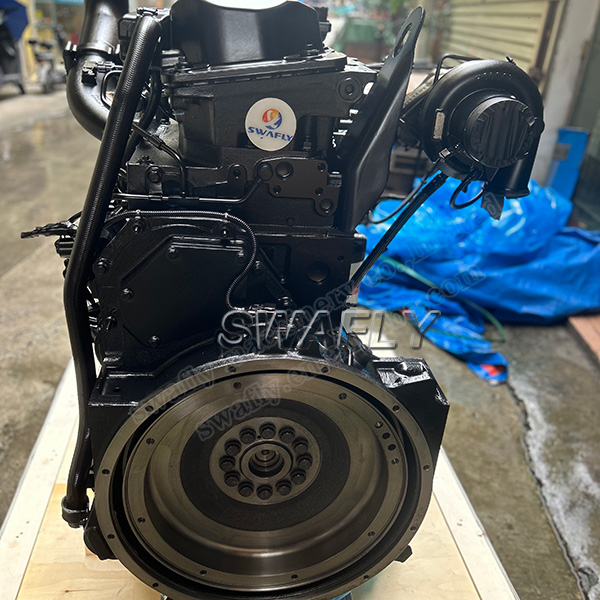

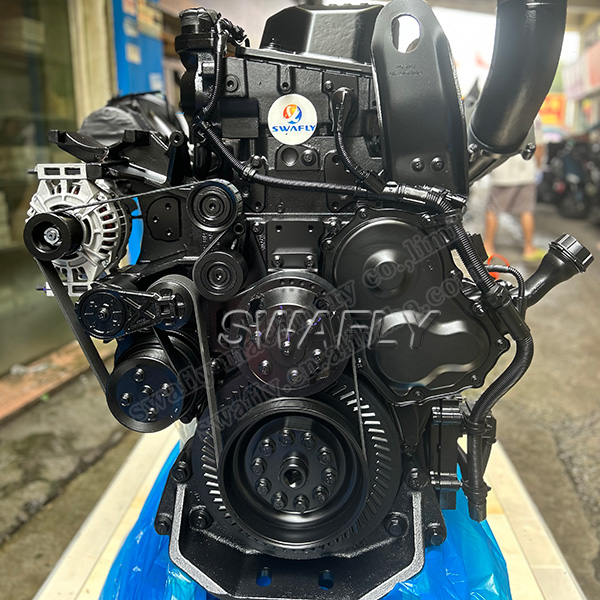

CUMMINS QSZ13-C550-30 Engine Assembly

The CUMMINS QSZ13-C550-30 Engine Assembly is a turbocharged, aftercooled, in-line six-cylinder diesel engine with a displacement of 13 liters (793 cubic inches). Here are some of its main specifications:

Power output: 410 kW (550 hp) at 1900 rpm

Max. torque: 2,508 Nm (1,850 lb-ft) at 1400 rpm

Bore x stroke: 130 mm x 163 mm (5.12 in x 6.42 in)

Compression ratio: 17.3:1

Aspiration: Turbocharged and aftercooled

Fuel system: High-pressure common rail (HPCR)

Lubrication system: Forced lubrication

Cooling system: Liquid-cooled

Emissions compliance: EPA Tier 4 Final, EU Stage V

Dry weight: 1,514 kg (3,338 lbs)

The Cummins QSZ13-C550-30 engine is commonly used in heavy-duty applications such as large construction equipment, mining, and marine vessels. It is known for its high power output, fuel efficiency, and durability. The high-pressure common rail fuel system and aftercooler ensure that the engine delivers maximum power and fuel efficiency while reducing emissions. The engine meets the latest global regulations for exhaust emissions, making it a popular choice for environmentally-conscious operators.

For inquiries or to place an order, please [contact us] today. Experience the difference with the CUMMINS QSZ13-C550-30 Engine Assembly – where performance knows no bounds.
